component.hpp File Reference

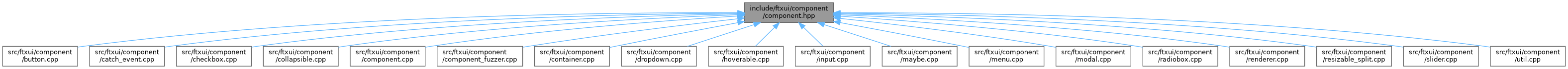

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	ftxui
namespace	ftxui::Container

Typedefs
using	ComponentDecorator = std::function<Component(Component)>
using	ElementDecorator = std::function<Element(Element)>

Functions
template<class T , class... Args>
std::shared_ptr< T >	Make (Args &&... args)
Component	operator| (Component component, ComponentDecorator decorator)
Component	operator| (Component component, ElementDecorator decorator)
Component &	operator|= (Component &component, ComponentDecorator decorator)
Component &	operator|= (Component &component, ElementDecorator decorator)
Component	Vertical (Components children)
	A list of components, drawn one by one vertically and navigated vertically using up/down arrow key or 'j'/'k' keys.
Component	Vertical (Components children, int *selector)
	A list of components, drawn one by one vertically and navigated vertically using up/down arrow key or 'j'/'k' keys. This is useful for implementing a Menu for instance.
Component	Horizontal (Components children)
	A list of components, drawn one by one horizontally and navigated horizontally using left/right arrow key or 'h'/'l' keys.
Component	Horizontal (Components children, int *selector)
	A list of components, drawn one by one horizontally and navigated horizontally using left/right arrow key or 'h'/'l' keys.
Component	Tab (Components children, int *selector)
	A list of components, where only one is drawn and interacted with at a time. The |selector| gives the index of the selected component. This is useful to implement tabs.
Component	Button (ConstStringRef label, std::function< void()> on_click, Ref< ButtonOption > option)
	Draw a button. Execute a function when clicked.
Component	Checkbox (ConstStringRef label, bool *checked, Ref< CheckboxOption > option)
	Draw checkable element.
Component	Input (StringRef content, ConstStringRef placeholder, Ref< InputOption > option)
	An input box for editing text.
Component	Menu (ConstStringListRef entries, int *selected, Ref< MenuOption > option)
	A list of text. The focused element is selected.
Component	MenuEntry (ConstStringRef label, Ref< MenuEntryOption > option)
	A specific menu entry. They can be put into a Container::Vertical to form a menu.
Component	Dropdown (ConstStringListRef entries, int *selected)
Component	Radiobox (ConstStringListRef entries, int *selected, Ref< RadioboxOption > option)
	A list of element, where only one can be selected.
Component	Toggle (ConstStringListRef entries, int *selected)
	An horizontal list of elements. The user can navigate through them.
template<typename T >
Component	Slider (SliderOption< T > options)
	A slider in any direction.
Component	Slider (ConstStringRef label, Ref< int > value, ConstRef< int > min, ConstRef< int > max, ConstRef< int > increment)
	An horizontal slider.
Component	Slider (ConstStringRef label, Ref< float > value, ConstRef< float > min=0.f, ConstRef< float > max=100.f, ConstRef< float > increment=5.f)
Component	Slider (ConstStringRef label, Ref< long > value, ConstRef< long > min=0l, ConstRef< long > max=100l, ConstRef< long > increment=5l)
Component	ResizableSplitLeft (Component main, Component back, int *main_size)
	An horizontal split in between two components, configurable using the mouse.
Component	ResizableSplitRight (Component main, Component back, int *main_size)
	An horizontal split in between two components, configurable using the mouse.
Component	ResizableSplitTop (Component main, Component back, int *main_size)
	An vertical split in between two components, configurable using the mouse.
Component	ResizableSplitBottom (Component main, Component back, int *main_size)
	An vertical split in between two components, configurable using the mouse.
Component	ResizableSplit (ResizableSplitOption options)
	A split in between two components.
Component	Renderer (Component child, std::function< Element()> render)
	Return a new Component, similar to |child|, but using |render| as the Component::Render() event.
Component	Renderer (std::function< Element()> render)
	Return a component, using |render| to render its interface.
Component	Renderer (std::function< Element(bool)> render)
	Return a focusable component, using |render| to render its interface.
ComponentDecorator	Renderer (ElementDecorator decorator)
	Decorate a component, by decorating what it renders.
Component	CatchEvent (Component child, std::function< bool(Event)>)
ComponentDecorator	CatchEvent (std::function< bool(Event)> on_event)
	Decorate a component, using |on_event| to catch events. This function must returns true when the event has been handled, false otherwise.
Component	Maybe (Component child, const bool *show)
	Decorate a component |child|. It is shown only when |show| is true. @params child the compoennt to decorate. @params show a boolean. |child| is shown when |show| is true.
Component	Maybe (Component, std::function< bool()>)
ComponentDecorator	Maybe (const bool *show)
	Decorate a component. It is shown only when |show| is true. @params show a boolean. |child| is shown when |show| is true.
ComponentDecorator	Maybe (std::function< bool()> show)
	Decorate a component. It is shown only when the |show| function returns true. @params show a function returning whether the decoratorated component should be shown.
Component	Modal (Component main, Component modal, const bool *show_modal)
ComponentDecorator	Modal (Component modal, const bool *show_modal)
Component	Collapsible (ConstStringRef label, Component child, Ref< bool > show=false)
Component	Hoverable (Component component, bool *hover)
	Wrap a component. Gives the ability to know if it is hovered by the mouse.
Component	Hoverable (Component component, std::function< void()> on_enter, std::function< void()> on_leave)
	Wrap a component. Gives the ability to know if it is hovered by the mouse.
Component	Hoverable (Component component, std::function< void(bool)> on_change)
	Wrap a component. Gives the ability to know if it is hovered by the mouse.
ComponentDecorator	Hoverable (bool *hover)
	Wrap a component. Gives the ability to know if it is hovered by the mouse.
ComponentDecorator	Hoverable (std::function< void()> on_enter, std::function< void()> on_leave)
ComponentDecorator	Hoverable (std::function< void(bool)> on_change)
	Wrap a component. Gives the ability to know if it is hovered by the mouse.
